What time is it?  From the GPS explorations described in another write-up, I was fairly confident of my place in space, and began to think about different ways of telling time. GPS time is straightforward. The satellites carry atomic clocks on board, and from the information they transmit it is possible to extract the time with more than sufficient accuracy to know when to take a lunch break.

    I knew almost nothing about different time standards when I first started looking into the subject. However, I have learned that International Atomic Time (TAI) is the gold standard for time, and has been since 1972. It is described here.
Coordinated universal time (UTC) is based on TAI, but with leap seconds added. The reason for adding leap seconds is to keep UTC within one second of Astronomical Time, which (skipping many details...) is based on the actual rate of earths rotation. The current method of measuring and recording Astronomical Time is UT1.

    Longwave radio station WWVB (60 KHz) transmits the time from Fort Collins Colorado in a slow digital format (1 bit per second). This is the same time (UTC) that WWV transmits (and WWVH in Hawaii).  However, in addition to atomic clock time, WWVB also transmits the difference to the nearest 0.1 second between UTC and UT1.

    People for whom imprecision causes distress may wish to know current astronomical time to the nearest one tenth second, rather than UTC from GPS or WWV or
from the computer (Network Time Protocol). Thanks to radio station WWVB that is possible, although not quite straightforward. [In truth, factors such as propagation path influence the accuracy of time received from WWVB.]


Clocks (physical devices) that use WWVB generally ignore the UT1 delta and display only atomic time, either to seconds or minutes.  To access the UT1 correction in WWVB data, one is obliged to receive and decode the signal at a lower level than typically provided by off-the-shelf clocks.

    Few radio receivers tune as far down in the longwave spectrum as WWVB transmits. Fortunately, 60 KHz receiver chips are inexpensive, for example: https://www.amazon.com/60kHz-atomic-clock-radio-module/dp/B01KH3VEGS. [The similar one in the accompanying illustrations was purchased from England a couple of years ago.]

Simulator test setup    Prior to undertaking the present study, one of my misconceptions was that WWVB could only be received on the US East Coast during hours of darkness. [My MFJ radio wristwatch synchronizes with WWVB time, if left on a window ledge overnight.] It would have been easy to test and disprove this nighttime-only assumption by tuning a longwave (or general coverage) receiver to 60 KHz, as demonstrated in the video at the end of these paragraphs.

    The photo (left) identifies components of a test setup. At first I did not expect to receive anything. That is why the receiver/decoder is not connected to the Arduino in this photo.  The illustration at the beginning of this write-up and the dashed line (left) shows where the receiver connects when actively participating.  The (real) green wire at the bottom comes from another Arduino that is running a WWVB simulator from: https://www.popsci.com/diy/article/2010-03/build-clock-uses-atomic-timekeeping.

    The decoding program (Arduino sketch) that I used may be found in the comments section of a YouTube video demonstration by ‘rbton
(https://www.youtube.com/watch?v=OeZzNehKL_Y&t=3s). I modified this program to use Serial output in place of an LCD display for testing and debugging. My adaptation also ignores the NTP part of the program. Finally, to have a clearer picture of the raw data, I stored decoded bits redundantly for display via the serial channel.  However, I did not modify the primary decoding logic in this very useful sketch.



Decoding simulated signal

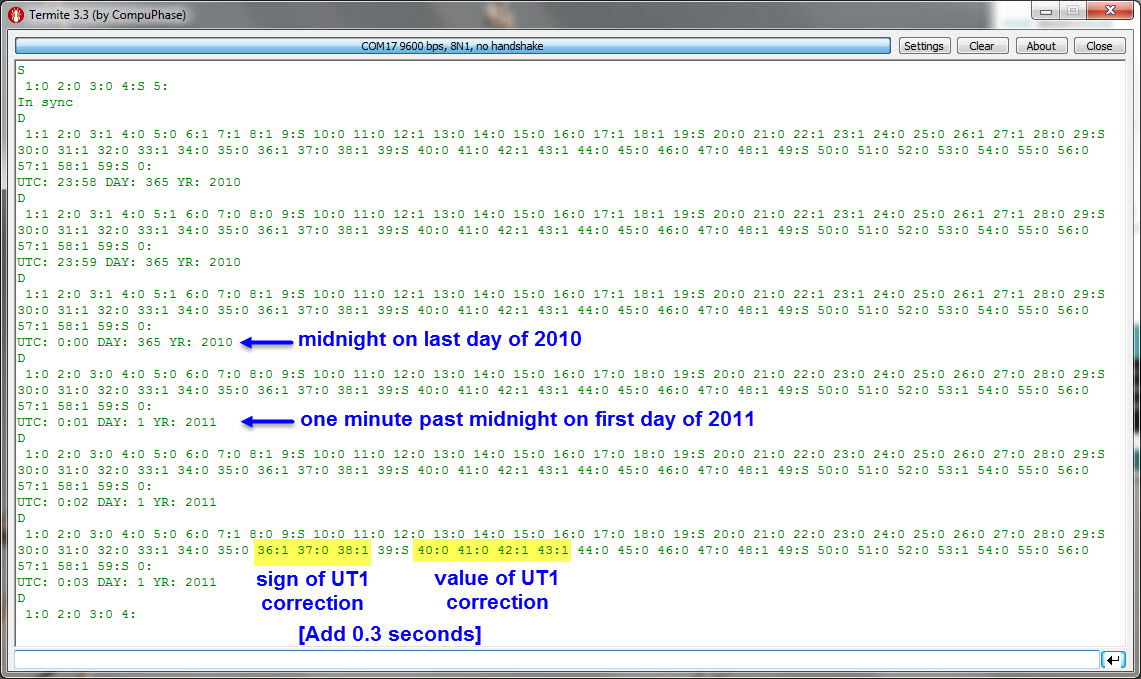

Simulation: The above clip shows decoding of simulator output. At this point I had attempted unsuccessfully to receive and decode real WWVB signals. I sort of knew that it wouldn’t work, because at this stage the receiver’s LED was blinking erratically, as if receiving or attempting to decode background noise or static (video demo below).


Real decodes: It’s always the antenna! I moved the small ferrite loop to a nearby window ledge. The window faces west (toward Fort Collins) although I doubt that matters. My plan was to start the decoder after dark and hope that it would decode something during the wee hours.  The first decode to pass the program’s validity checker came at 11:07 PM EST.

First valid decode

    As shown, the current
[at the time of this writing] UT1 (astronomical time) correction (called DUT1 ) is +0.2 seconds. Between this first decode and daybreak just over 30 valid decodes were obtained, the majority coming in the last few hours of darkness. The number of decodes was disappointing, however. I had expected more, given that the radio wristwatch with its miniscule internal loop antenna is able to receive WWVB at night. I decided to try one more change to the test setup, namely a different slightly larger ferrite loop, taped to a block of wood in order to clear the window frame. At the same time I strengthened the program’s validity check, although the original one (based on 13 bits) had not falsely passed any invalid decodes.

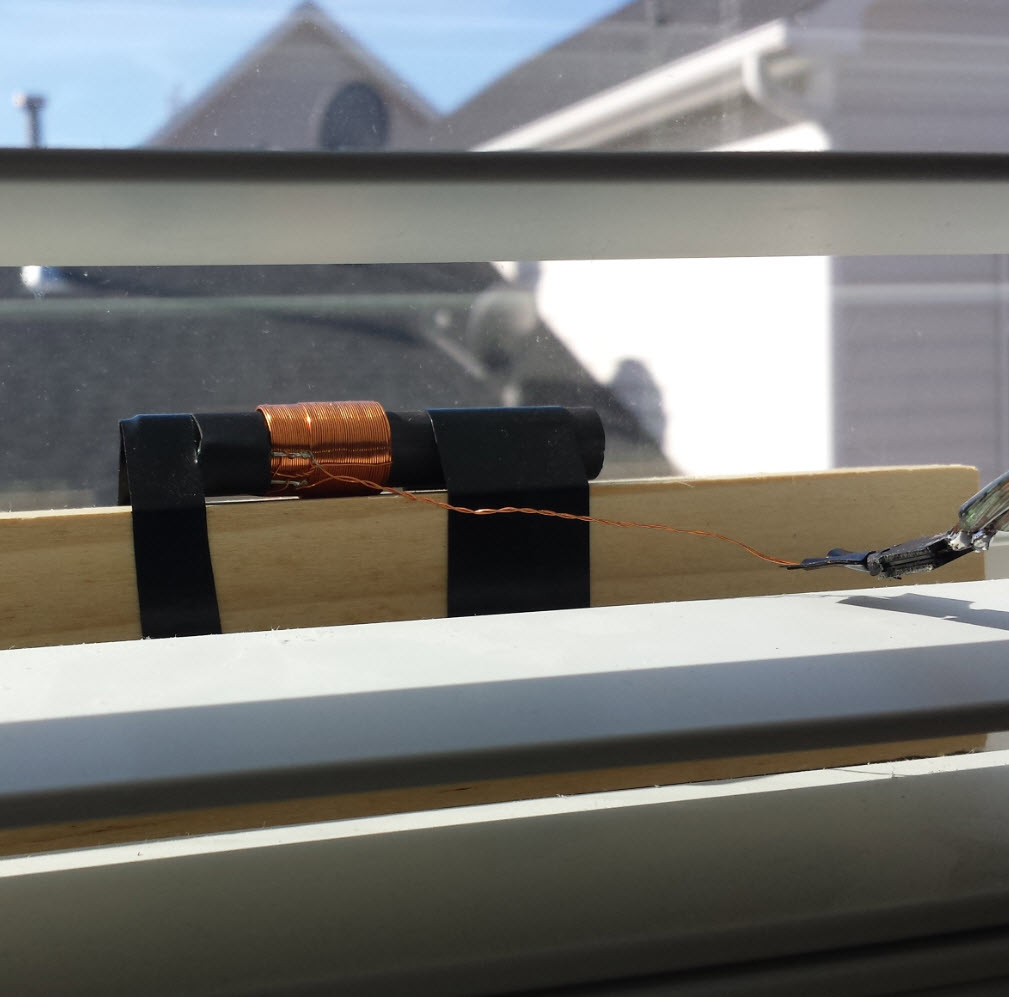

Ferrite loop on window ledge

    To my astonishment this slightly revised setup produced valid decodes while it was still daylight—4 PM Eastern time (2 PM Mountain time) on a sunny afternoon. Up until this point I had thought that only nighttime reception was possible, having not yet tuned an appliance receiver to the WWVB frequency.

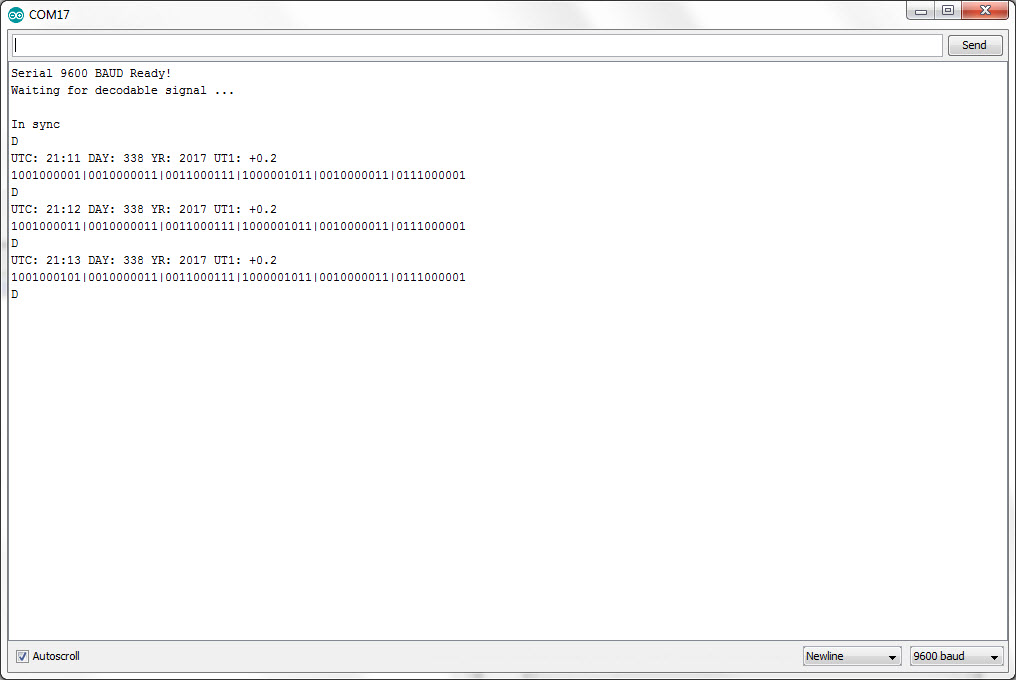

Valid daylight decodes


Before this test (screen capture above), the sketch was modified to display the bit stream of the minute corresponding to the decode, in a shorter more readable format. A comment in the original sketch explains, “WWVB sends the time AFTER the time mark, so we need to add a minute for the correct time.” Between 4 and 8 PM, about 60% of decode tries were valid. This percentage subsequently decreased, so it is possible that reception was unusually good on this particular afternoon. —Moderately long sequences of valid decodes were also observed in the pre-dawn hours.

    The revised validity checker occasionally reports a false negative. In other words, it detects a bit error when the program has correctly decoded day and time, and other values of interest, for the same minute.


Summary: This brief exploration yielded more than the usual share of surprises, and clarified some previously puzzling things for me. For example, I had wondered how the MFJ watch was able to detect spring and fall time changes, and adjust the hour hand accordingly, although not exactly on the specified 2 AM hour. Daylight Saving Time information is part of the WWVB message. (It is a 2-bit code: 00=Not DST, 10=DST begins today, 11=During DST, 01=DST ends today.) I was also curious how the radio watch would know when to trust a time decode. (The watch only needs hour and minute, and of course DST, but not day or year.) A guess would be that it reads the mark and reserved bits, same as our first validity check. It could perform more complex checks, such as requiring decoded time to increment correctly on two or more successive decodes. —I don’t know how it actually works.

    If the tenths-of-seconds communicated by WWVB’s UT1 correction is not precise enough, one can obtain the exact duration of any day (rotation of the earth) by visiting https://www.timeanddate.com/time/earth-rotation.html. According to experts the main cause for the slowing of earth’s rotation is tidal friction: http://www.physlink.com/education/askexperts/ae695.cfm. Curiously there will come a point when this particular cause is no longer operative—billions of years hence, they say!

    Time Demo: wwvb.mp4
