    u-blox GPS modules
Much of the information to be presented in the following paragraphs (perhaps the useful part) may also be found in a “Build this....” article, by Trident Amateur Radio Club president Ron (K4TCP).

    Radio amateurs deploy GPS modules in a variety of applications, including APRS (https://github.com/4x1md/vx8_gps), high-altitude ballooning (http://www.arhab.org/), or possibly in the construction of a precision station clock. [Although for station time, an Internet solution
might also be considered, such as was described in my station clock project, or alternatively, long wave radio time, e.g., station WWVB in the United States.]

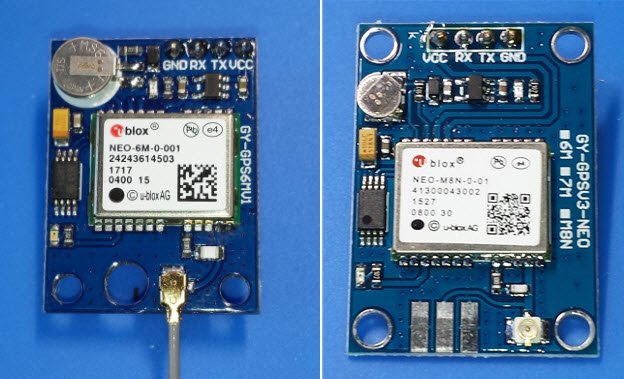

    The first u-blox GPS module I purchased was a Neo-6M, similar to this one. I didn’t realize at the time that a more advanced model the Neo-M8N was available for roughly the same price (e.g. https://www.ebay.com/itm/142360007536). These modules consist of a postage-stamp size evaluation board containing the GPS receiver, a small battery, annotated serial interface connect points (no header), plus an active antenna that attaches via a tiny and rather flimsy connector. The idea must be that once the unit has been mounted in an enclosure, the board and antenna will not be jostled or fall apart, as they are inclined to do on the bench. The M8N also has attachment points for an accessory antenna connector (not included).


Neo-6M (left) and Neo-M8N (right)    The u-blox module can be interfaced directly with a computer using a USB-to-serial adapter, or if the computer is old enough, a hardware serial port (with appropriate voltage conversion). Another option is to use Arduino’s hardware and software serial capabilities for message forwarding. The present exercise employs the latter method.

    Software serial: I have long had difficulty with directions that appear to omit a frame of reference.  For example, if the weatherman says that a storm system is circulating anti-clockwise, I want to ask, “Do you mean looking up into it or looking down on it?” (S/he means the latter.) It is the same when directions say, “pin 2 is transmit.” Well, who is talking? Is it device A or device B, and so forth? Possibly I am the only person in the world with this problem. However, my point is that whereas input-output connectors may have standard specifications, if a communications channel will be defined on arbitrary pins, it is important to identify which pin serves which direction of communication.

    Multiple Arduino serial com pass-through sketches may be found on the Internet, for example the one at https://blog.startingelectronics.com/how-to-use-arduino-serial-ports/. They are all basically the same, up to naming of variables and choice of transmit-receive pins. I have copied a pass-through sketch, making only minor changes, from the aforementioned link here.

Before abandoning my rant about specifying the transmit-receive frame of reference, one final note: Care is also required to observe the directionality of the hardware serial connection. The photo above left shows that Neo-M8N connection points are directionally opposite to those of the Neo-6M, other things being equal (chip side up, battery or antenna location, etc). Of course, these evaluation boards came from different suppliers and there may be no standard for such things.


FullExample.ino Output Example

    In the example listing

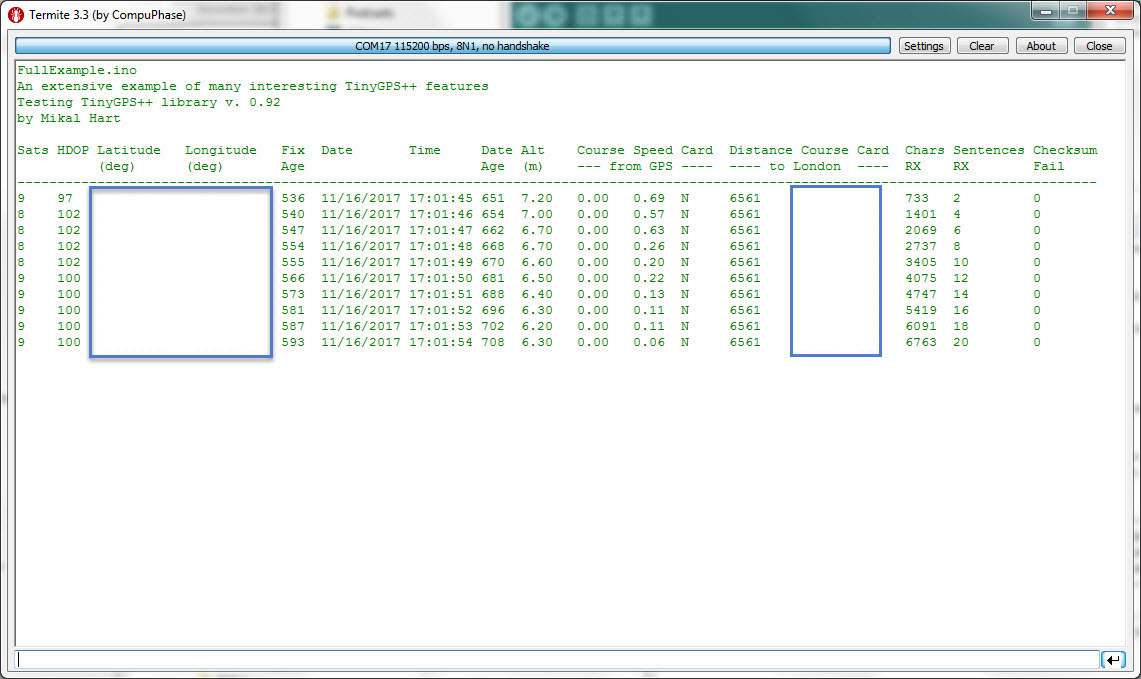

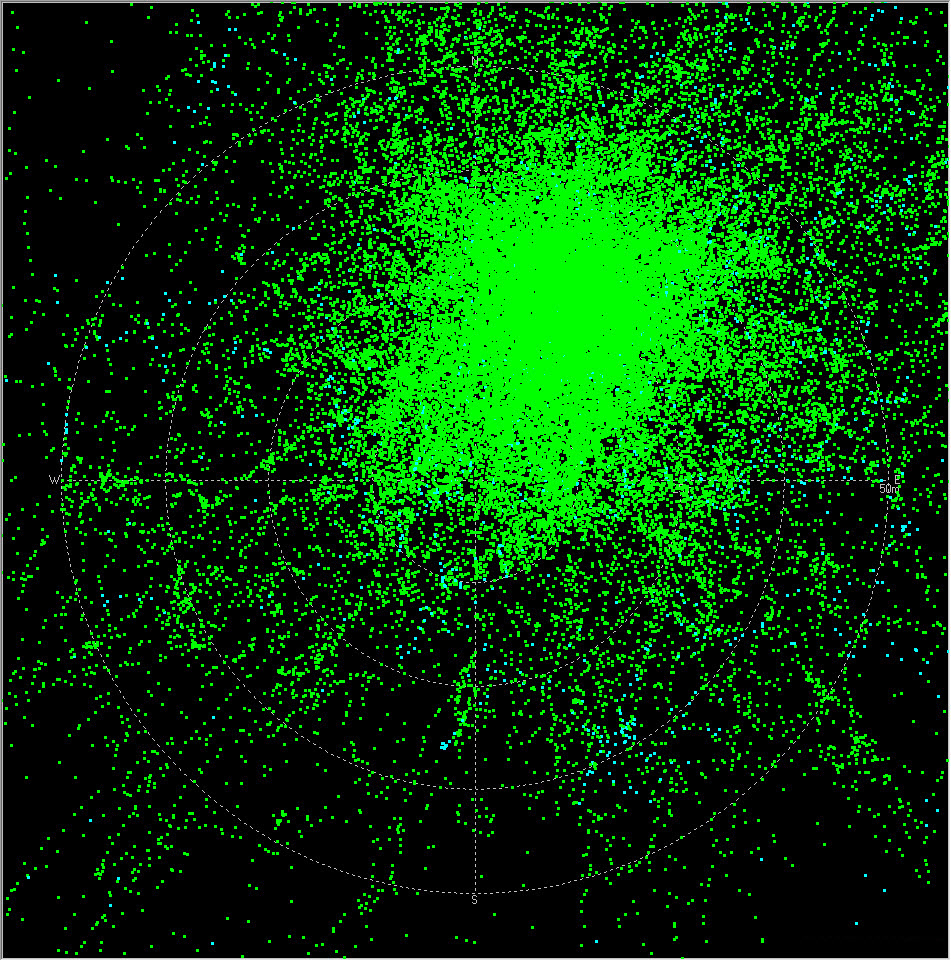

above, selected data columns have been blanked out. Well, from the remaining viewable data, fixes were obtained somewhere on a circle that is 6,561 kilometers from London, so the location isn’t 100% anonymous. The software that produced this listing is called “FullExample and is part of the TinyGPS++ Arduino library (https://github.com/SensorsIot/TinyGPSplus-for-Neo-M8N). I modified the sketch slightly to omit displaying asterisks when no valid data are available. This and similar examples included with the TinyGPS Arduino library should make custom applications development an easy exercise. Another excellent software resource is the u-center suite (from u-blox), which may be downloaded here. The green-on-black “Deviation Map reproduced at the beginning of this narrative is one of several views furnished by the u-center software.

M8N on breadboard

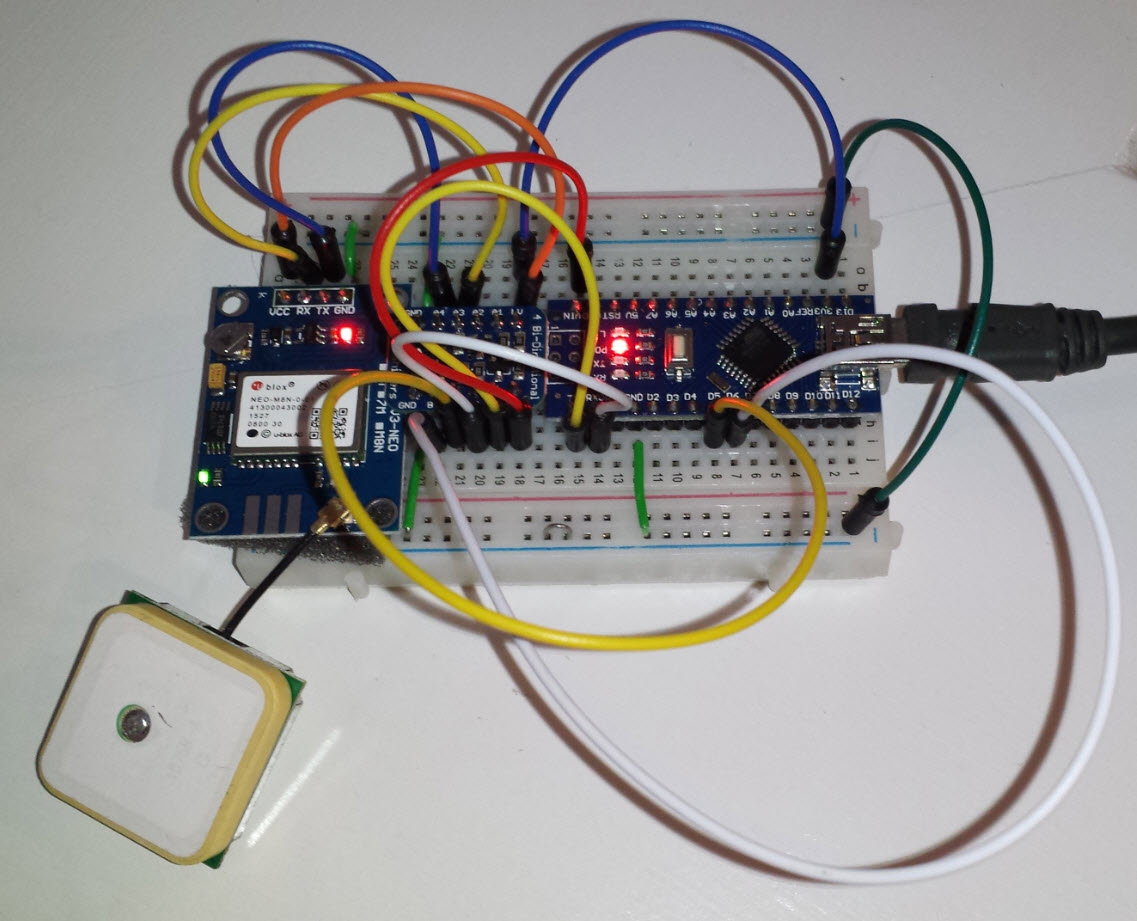

The breadboard photo above shows a Neo-M8N connected to an Arduino Nano by way of a bi-directional level converter. The 3.3 volt pin on the Nano supplies power to the GPS module, while GPS receive and transmit wires connect to Nano pins D5 and D6, respectively. These pins are the same ones defined in corresponding test sketches for software serial use.  Of course, other pins could be used instead, provided sketches and wiring are consistent. Connections (in the photo) between Arduino pins 0 and 1 and the level converter at B1 and B2 are not relevant to the configuration being demonstrated.

    A flashing green LED on the Neo board indicates that the module is receiving
sufficient satellite data for a valid fix. This indicator is handy for checking things out at the bench, without having to connect the module to a computer. Based on limited testing the Neo-M8N appears to be more sensitive than the 6M. A possible explanation is that the M8N processes data from Russian as well as United States satellites. When testing inside the house, that is without a clear sky view, the M8N quickly acquires a fix, while the Neo-6M may take several minutes (or may fail completely on an overcast day).

    It should not be surprising that altitude estimates derived from these modules are generally poor, because the same is true of consumer GPS devices. A quick Internet search yields several putative explanations for the altitude anomaly, for example the following, which seems plausible: http://gpsinformation.net/main/altitude.htm

    I have no particular goal or application in mind for these units. One possibility is to interface the M8N with a specific amateur radio transceiver. Another idea that seems logical, but I’m not sure is valid, would be to average many thousands of fixes in order to derive an exceptionally precise estimate of a specific (marked) location. According to scientists and the National Geographic Society, North America is moving away from Eurasia at a rate of 2.5 cm per year. Hmm!

    For fun I used Excel to compute the average of 62,725 GPS fixes acquired overnight. I thought that the result should provide a decent estimate of the latitude and longitude of the bannister next to my computer desk. However, given this average as input, Google Earth puts its stickpin over the next door neighbor’s breezeway, about 10 meters from the true location. How accurate is Google Earth? One supposes that cartographers have referenced the photos to precisely known (surveyed) locations. But that is only a guess.

    GPS Demo: u-blox_modules.mp4
