Two touch screen projects

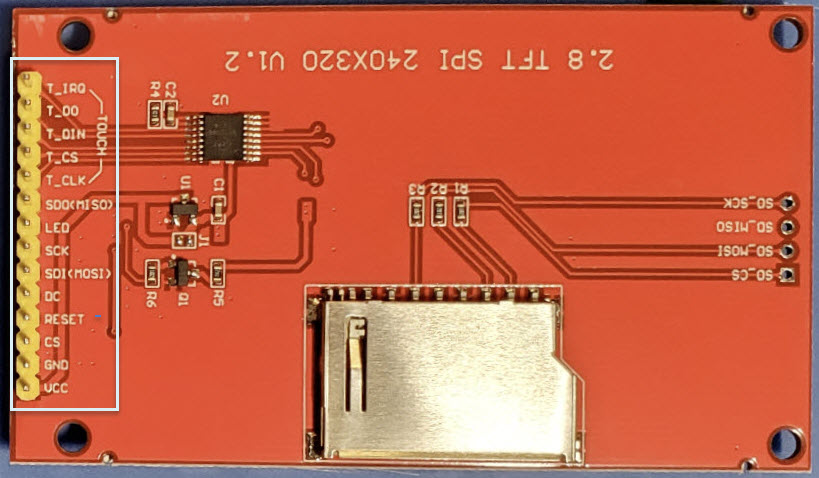

     Two Teensy Touchscreens: This project’s goal was to explore and learn how to use small touchscreens with microcontroller-based applications. At first I did not have a specific application in mind, so to get started I decided to redo a couple of previously completed projects, substituting touchscreens where before there had been switches and knobs. Right away I encountered a challenge of sorts. The touchscreen I’d bought (HiLetgo 2.8 inch TFT, 320 horizontal by 240 vertical pixels) does not have built-in serial bus TFT pinoutscapability. Instead it connects via two Serial Peripheral Interface (SPI) channels, one for display and one for touch. Each SPI consumes up to 5 or 6 pins for various signals: clock, data-out, data-in, CS, DC (TFT), or IRQ (touch). In other words this small touchscreen device is pin-hungry!

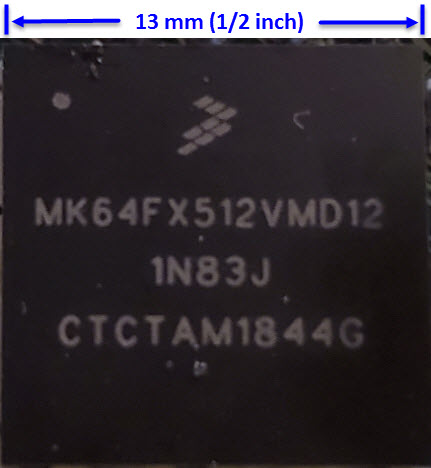

ARM MK64FX512    Of course microcontroller applications themselves consume I/O pins, in addition to their user-interface parts. This realization may have been the stimulus that caused me to search for an alternative to the Arduino Uno
(ATmega328P) that I had used most often in projects. The Uno has 14 digital I/O channels, more than adequate for most projects, but perhaps fewer than would be needed to wire two SPI channels in addition to typical application specific I/O requirements.

    The Teensy series of microcontroller development boards has
been around for several years. However, for me it was a revelation to learn how much more compute power and memory this series has than boards and chips that were previously familiar. I wondered how it was possible not to have noticed the Teensy long ago!

    Teensy 3.5 is not the latest in the Teensy series, but was advertised as “5-volt tolerant.
That claim, which evidently applies to some but not all Teensy 3.5 I/O pins, appealed to me, and is why I decided to start with 3.5.

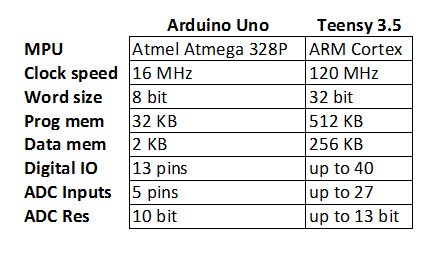

    The following table compares significant features or parameters of the Uno and Teensy —

Microcontroller comparison


IDE warning message
    Arduino Uno’s 2 KB dynamic memory limitation is especially troublesome when the sketch (control program) includes string variables. The Arduino IDE’s low memory warning is all too familiar, and cannot as a general rule be ignored. I was aware that the larger Arduino program memory allocation could also be used to store arrays of constants, and had taken advantage of this construct in a couple of sketches (for example, https://lloydm.net/Demos/magic_eye.html). However, the PROGMEM facility is rather awkward, at best a workaround, and does not compare to the 256 KB of no-tricks dynamic storage available in Teensy 3.5.

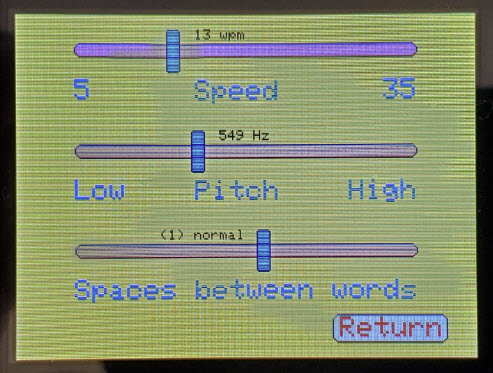

Completed redesignSettings    To exploit the more than hundred-fold greater dynamic storage in Teensy while also learning how to interface the touchscreen I thought of implementing a memory intensive extension for the ‘Mother of all Keyers’ MOAK project. Some time ago I had written a (NetBeans) computer application that included an array of 1000 common English words together with their relative frequencies, for presentation via the MOAK as Morse practice (https://lloydm.net/Demos/moak.html#netmoak). With Teensy it would be possible to bypass the computer interface, which didn’t work very well, and instead store the words along with their empirical probabilities in the microcontroller’s memory. I did this. It worked. And the revised MOAK has no switches or knobs—all main options are displayed on a single screen and are selectable by touch.

    In order to fit everything into a small package (photo above right) I designed a PCB in Autodesk Eagle (the free version) and ordered prototype boards from JLCPCB. The PCB design (my part) had three errors, two omitted resistors and one omitted trace. These were easy to solder in place under the manufactured PCB. On the software side, I split the Teensy sketch into separate executable and data files
for flexibility. Thus, additional words or terms could be entered into the common words and radio terms files without changing anything in the main sketch. Although this summary omits construction details, the pinouts worksheet is shown below and a zipped folder containing the sketch and data may be downloaded (Right click link and select Save as...).

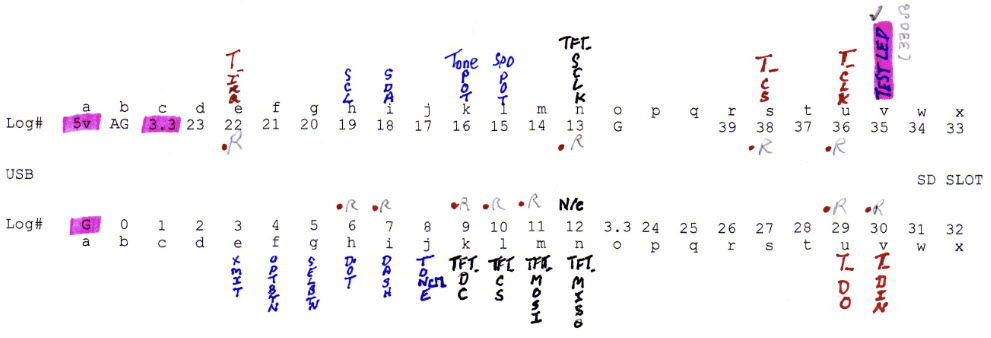

Pin assignments worksheet

Printed lowercase letters refer to a generic (prototype) PCB legend—Ignore these. Labels 5v, AG, etc. correspond to the top (or front) view of the Teensy 3.5. The handwritten letter ‘R’ indicates that a 4.7K pullup resistor was also connected. Inner pins were not used. For that matter, some labeled pins (option and select buttons) were not wired in this touchscreen implementation.

      Hilltopper touchscreen: My next touchscreen exercise began as a harebrained idea. About a year ago I had interfaced a two-line character-based LCD to the Hilltopper 20 and later also the Hilltopper 40 (https://lloydm.net/Demos/Hilltopper-20.html). These are low-powered CW transceiver kits from Four State QRP Group.  Later I added minimal CAT capability to the Hilltopper’s microcontroller code, enabling frequency to be displayed or adjusted in Ham Radio Deluxe (HRD) or other ham radio computer applications that support CAT. The harebrained part of my touchscreen idea involved replacing the Hilltopper’s built-in Atmel microcontroller with a Teensy, which would necessarily have to be located outside the unit’s enclosure—there’s no room inside for it.

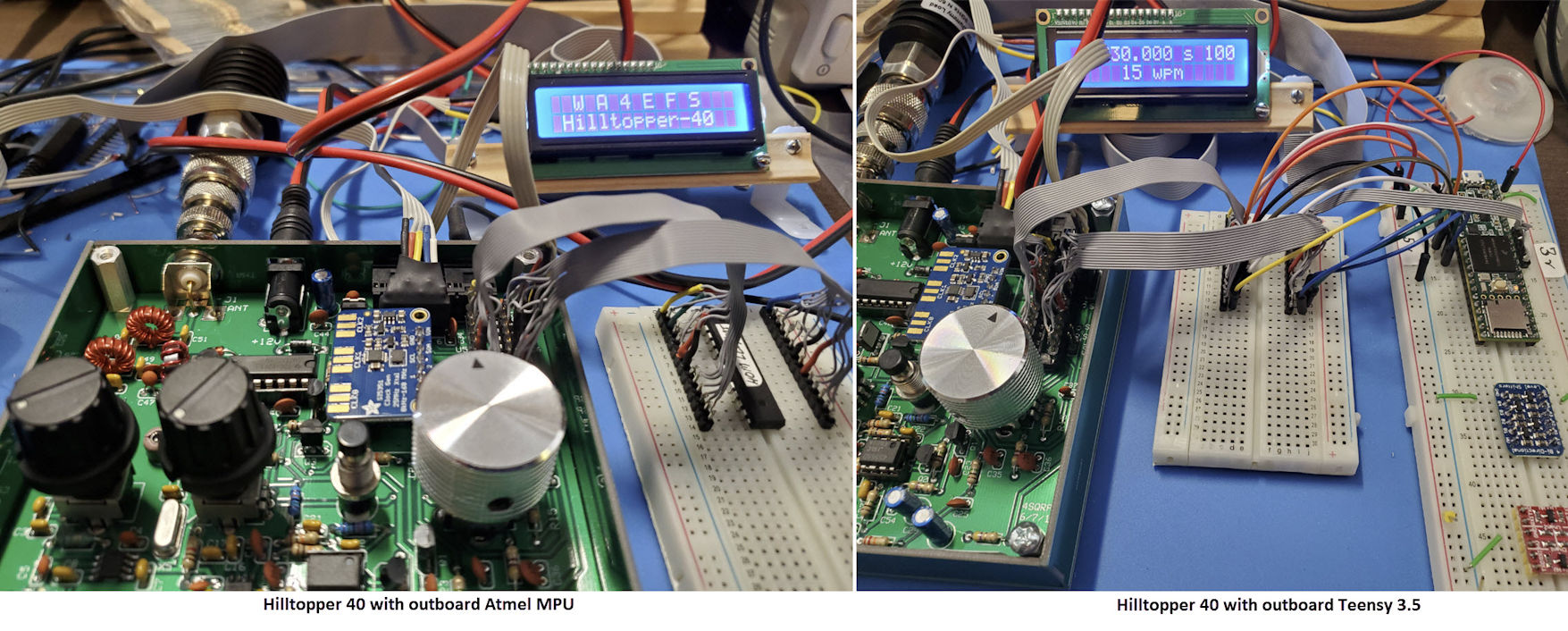

Hilltopper 40 with Teensy 3.5 on breadboard
    I carried this idea so far as to route a couple of ribbon cables from the microcontroller’s 28 pin DIP socket to a breadboard-mounted ATmega328P chip, and subsequently to map nearly all Hilltopper microcontroller functions to Teensy. I used small round pin headers for the 28-pin socket end of these cables, not the shaped headers that go with Arduino shields. These small pins did not destroy the socket, although the MPU chip did not fit as snuggly after having seated and unseated the pin headers a half-dozen or so times. Upon replacing the ATmega328P with a breadboard-wired Teensy 3.5, Hilltopper microcontroller-based functions worked the same, but the unit was no longer receiving, or more precisely it appeared to be receiving somewhere out-of-band.  I am not sure why—possibly its 5-volt regulator was overloaded.  It doesn’t matter because at this point I realized that nothing would be gained by replacing the transceiver’s microcontroller with a different one located outside the box. Why not instead use the previously implemented CAT interface to transfer data between a touchscreen accessory and the Hilltopper.

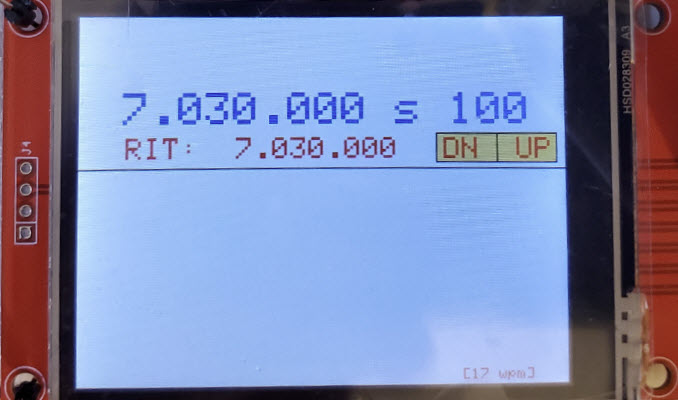

Testing the frequency display    Exchanging frequency data was straightforward, the same as using HRD or another computer program. I made up a couple of CAT Z-commands in order to retrieve the Hilltopper’s RIT step and Morse speed for display on the TFT.  (The modified sketch is linked in the next to last paragraph of this write-up.) However, after displaying essentially all data available to display from the Hilltopper, the TFT screen was less than half full.  A 2.8 inch TFT has considerably more space available for displaying textual data than a 16 x 2 LCD.  At first I thought of filling the empty space with a picture or design, and I read about rendering bitmaps on a TFT. Then I thought it would be neat to display a virtual S-meter or even better, a spectrum or waterfall, such as Icom or Yaesu ham shack transceivers have. Of course, I had no idea how to do this, either the electronic or coding parts. It occurred to me that a reasonable starting point would be to learn a little about Fourier transforms.



A digression: Joseph Fourier (1768-1830) surely had many good vibrations between his ears. Some of these led to a profound conclusion about vibrations in general, namely that complicated ones can be broken down into combinations of simpler ones. Any sound wave, for example, can be expressed as a combination of pure tones. Fourier figured out how to do this, and how to do it backwards. It would be challenging to name anything in pure mathematics, or at least in Analysis, that has Joseph Fourierproven more useful to science and technology, or indeed to 21st century life, than this one thing that Fourier thought of more than 200 years ago…

     Science and engineering students learn about the ‘Fourier transform’ as a tool that is essential for solving a range of problems s
Claude Shannonpanning the subject areas of their studies. Students of computer programming learn to compute the transform over discrete datasets, using techniques that have been designed and perfected to make the most efficient use of whatever computer resources are available. Consumers who listen to recorded music, or view .jpeg photo images, or watch cable TV, or do anything other than retreat to the wilderness, are certain to make frequent use of Fourier’s insights, without perhaps being aware of them or their importance. None of these artifacts of modern life had been imagined two centuries ago. Maxwell’s theory of electromagnetism, Hertz’s discovery of electromagnetic waves, and Marconi’s subsequent invention of wireless communication all came to pass in the late 1800’s. From these seeds has sprung a mind-boggling range of artifacts and applications.

    In the mid-20th century, partly in consequence of efforts to improve communications, mathematicians discovered another powerful abstraction tha
t would eventually be applied along with evolving communications technology to bring about revolutionary change in science and society. That concept was ‘information’. —Information theory and Fourier analysis fit hand-and-glove to yield applications that have advanced scientific understanding in many fields, as well as technological ‘spin-offs’ of inestimable value.1


2 KHz sine wave    Learning by doing: An Internet example from Norwegian Creations was particularly helpful for constructing a working Arduino sketch that demonstrated the Fast Fourier Transform (FFT). I hooked up a function generator (AKA signal generator) to a Teensy ADC input pin, then set the output amplitude to my instrument’s lowest possible level (4 mV P-P), and the DC offset to 1.8 volts, the approximate midpoint of the ADC’s range.  The FFT peak corresponding to the generated 2 KHz sine wave was crystal clear in the TFT display. (The outline in the upper left corner of the photo is a tab for removing the protective cover from the TFT.) Twirling the frequency knob moved the peak left and right, as expected. Substituting a square wave source revealed the expected secondary peaks, etc. For this graph and others reproduced in these paragraphs, amplitude was auto-scaled to the maximum value across frequencies, excluding the DC end, where of course the peak is very large.

    Without investigating the matter I imagined it should be possible to hook into a signal source, somewhere before Hilltopper’s narrowband CW filter, and display a few kilohertz of spectrum on either side of the tuned frequency. This half-formed ‘plan’ is what motivated the exercise. However, as it turned out I was not able to do this. At this point I proceeded blindly along, not stopping to think in more detail about how to integrate the display with the Hilltopper.

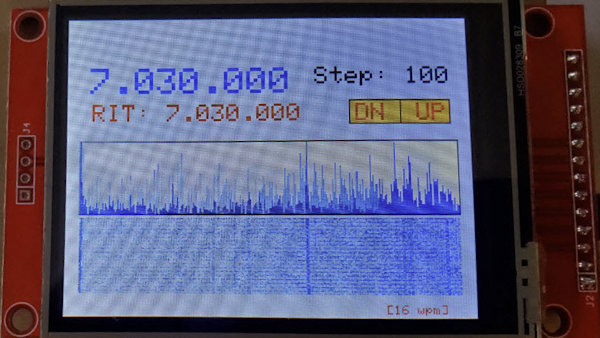

Test integrated display    A waterfall display is like successive spectrums, each a single row of pixels, where amplitude has been converted to brightness or color.  The waterfall’s vertical dimension records previously scanned spectrums, hence corresponds to time. I decided to use shades of blue for amplitude, from RGB (230, 230, 255) lightest to (0, 0, 255) darkest. Once the waterfall display was working I blended the FFT sketch (program code) into the Hilltopper TFT / CAT sketch (or in the reverse order) so that both Hilltopper frequency data and the spectrum graphs could be displayed on the same screen, filling it up! (Cross-hatch lines in the photo are camera artifact—not present in the TFT display.)

    I thought it was possible that touch sensing would interfere with weak signal sampling and introduce undesirable artifacts, but it does not. Adjusting frequency or RIT step by touch does not affect the graphic display. It is fair to note, however, that integration efforts did not always succeed on initial testing. At several points I had to troubleshoot and modify the code to get a desired result.

    Before digging into the Hilltopper receiver schematic, I thought to connect a splitter to the headphone jack, and run one part through a ground isolator (superfluous, as it turned out) to the ADC, just to see what would happen. In place of the previous audio test signal I set the function generator to output RF near the Hilltopper’s power-on frequency of 7.030 MHz, and laid the function generator probe (antenna) on the table next to the Hilltopper. As expected, the RF signal was detected by the Hilltopper. When tuned to between maybe 400 and 800 Hz the audio was clearly visible as a line in the spectrum / waterfall displays (sorry, no photo). However, the CW filter completely blocks audio above about 1 KHz, so that only low-level noise displayed in the top three fourths of the graph with this test setup. Furthermore the tuned frequency was not at the center of the graph. (Assuming that the tuned frequency is the same as the audio zero-beat frequency, it would correspond to the left edge.)

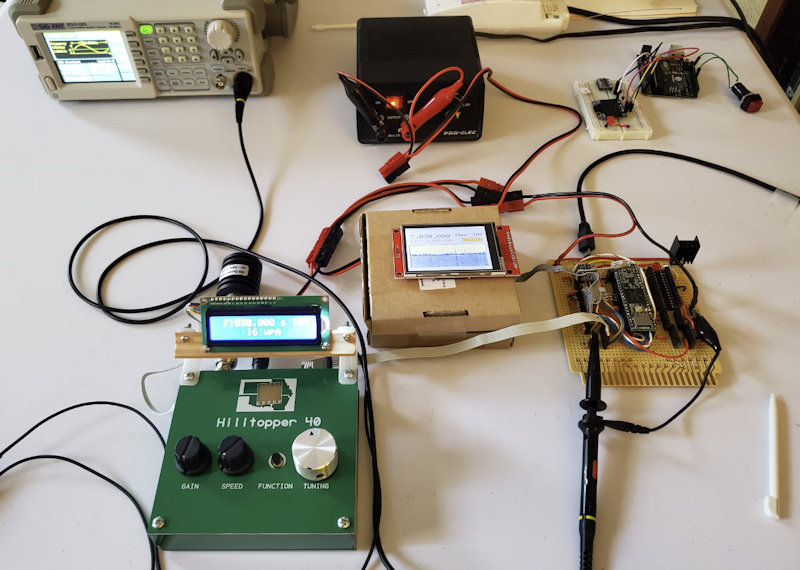

Integration testing

    As previously noted I have not figured out how to extract a suitable passband of say 4 or 8 KHz from the receiver, with the tuned frequency at the center, if that is even possible. One constraining factor is that transmit-mute blocks only the final stage of amplification—In truth I don’t know enough to work out how to use existing circuitry and I did not want to duplicate receiver stages. So for this phase of the exercise the spectrum and waterfall displays remain essentially decorative, as a bitmap image or unrelated graphic would be.

    This story of exploration does not include schematics or other details, such as would accompany a construction project. Nevertheless for whatever interest they may have, the revised Hilltopper sketch with made-up CAT Z-commands for returning RIT step and Morse speed data may be found here and the Teensy 3.5 sketch that interfaces with the Hilltopper for displaying and adjusting frequency via touchscreen may be found here.

    The project as a whole has been instructive, not only about interfacing TFT/touch devices, but also how to compute FFTs using an Arduino FFT library, and how to display frequency-domain data in forms resembling those of advanced devices.

    Demo video: TwoTouchscreens.mp4


Projects Home
