XBee

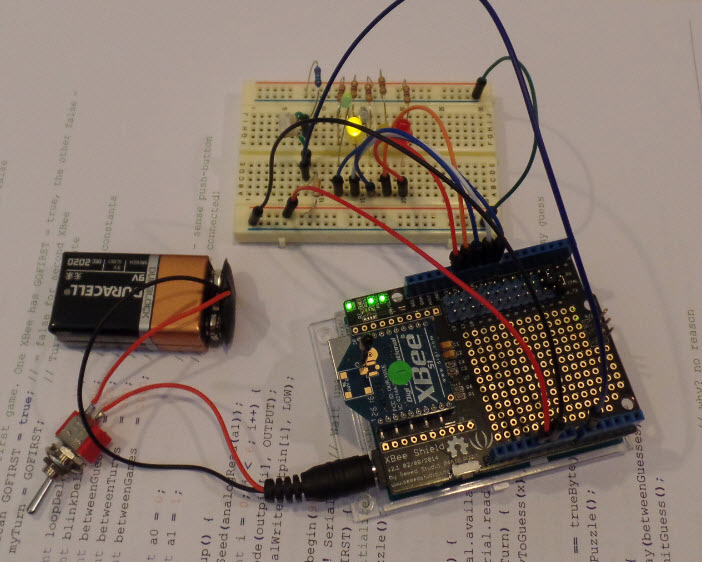

    XBee friends: While rummaging for bargains in the Radio Shack store closing sale I came across a couple of small boxes labeled ‘X-Bee Shield’—I think the price was $6.00, XBee not included. At the time I did not know what an XBee was, but for $6.00 and some unknown but presumed-small additional cost I might find out. A few weeks later I purchased a pair of 2.4 GHz XBees for $12 each.  The USB adapter that was needed for setting them up was an additional $10.  All considered, to learn a little about XBees was not an expensive proposition.

    On-line tutorials and examples typically feature one XBee connected to the computer via USB and another connected to an Arduino. The program XCTU (free download from DIGI) can be used to configure XBees, and to setup a pair of them to communicate with one another. In addition to its configuration options, XCTU
includes a console that supports bi-directional wireless communication between a computer-connected XBee and another one at a distance away. All this is documented in multiple places. However, as a learning exercise I wanted to make a different kind of demo, one in which both XBees would be Arduino-based, neither connected to the computer or the XCTU utility software.

    The idea that sprang to mind and the one I will describe here was a simple number guessing game in which one Arduino would pick a number and the other would guess it, transmitting each guess wirelessly. On hitting upon the right guess, the turns would change. As imagined, the demo program or ‘sketch
would have no intelligence, but would simulate an autonomous conversation between XBees—actually between ArduinosXBees are only the radio part.

    Before writing the demo sketch I first created a simple test program that would transmit a single byte, or receive a byte and return a one byte reply. In theory, for this test Arduino
s on-board LED (pin 13) would fire whenever a byte was received. However, the test did not workhow could such a simple program fail? Or, more basically, given that it had failed, how could the program be debugged? In order to see what was happening during execution I wrote a simple subroutine that would flash an attached LED n-times. By observing the number of flashes, it would be possible to deduce where failure occurred. Alas, there was no obvious failure. Every part of the sketchthere werent manywas being reached, and executing, yet nothing happened. This caused me to wonder if I had inadvertently fried one or both of the XBees. But that was not the explanation. On testing each XBee again, using XCTU, they both checked good.

    Something was different between the XCTU test and the Arduino-connected XBees test. As I thought about this I realized that I had not configured the XBee shield jumpers, having assumed that
they were connected to the appropriate pins for Serial communication, as shipped. This was not the case. The default Arduino Uno UART pins are D0 and D1, while the XBee shield (out of the box) had jumpers on D2 and D3. Of course, I should have checked this at the beginning, or at least have read the Serial documentation, but what can I say... Obviously serial communication does not work unless something is connected. After transferring the XBee transmit and receive jumpers to Arduino’s default serial com pins, the test sketch behaved in the expected way.

    The rest was anti-climax. The number-guessing game sketch also worked more or less as had been conceived. With the program loaded the XBees began an animated conversation in their rather limited blinking LED language. The demo sketch provides an easy-to-understand starting point for Arduino XBee serial communication. The same program runs in both XBees, except that near the top the constant GOFIRST should be changed to false for one of the Arduinos. A small amount of additional code might eliminate this asymmetry.
Other variants, different numbers of LEDs or different Arduino pins, etc. should require only minor program changes.

    XBee demo: XBee/friends.mp4


Staying in touch: How far apart can XBees be? The particular ones I tested cannot be very far from one another. When placed across the room or in nearby rooms they continue conversing. However, at greater distances they lose contact, and stop talking. On looking into this I found that the units I bought are the lowest power type at 1 mW. More powerful versions are readily available, as are other similar Arduino-compatible transceiver chips that operate in the 915 MHz band, where distances of up to a few miles are possible.

    Although the number guessing game was just a demo, I wanted to address the case where the XBees go quiet after losing contact. The sketch should be able to detect when they are stuck so that they can unstick themselves. To this end I made a small auto-recovery patch. It works like this: First there’s an ‘idle timeout’ number. It is either zero (meaning the auto-recovery feature is not implemented) or it is a small random amount more than twice the time between games.  Second, there is an active timer that resets whenever a byte is received from the other XBee, in other words whenever the normal thing happens.  Finally, if the timer reaches a value at least as great as the timeout, meaning no data have been received for too long, then it goes into auto-recovery.

    The first thing auto-recovery does is switch turns, in case the two Arduinos are on the same turn, as seems to happen on signal loss more often that I would have guessed.  If this particular try doesn’t work it will switch turns again in a short time, sooner or later getting on the right (complementary) turn even if both are concurrently trying to recover.  Next auto-recovery transmits a byte that can be interpreted either as a bad guess, in case the other one is waiting for a guess, or as ‘your guess was correct
OK to start another gamein case the other one is waiting for feedback.  Finally, it flashes the blue LED (three flashes) so that a person can tell that a recovery attempt is executing.  Recovery also resets the timer, in order to allow time for the other XBee to respond before starting another recovery attempt.


(revised sketch) My expectation was that when the XBees were stuck it would be necessary to move them closer together, so that they would resume play after recovering.  What actually happens is they resume play right there and then, without being moved again. When a signal is good enough for play most of the time, but not sufficient to prevent occasional drops, they are able to resume or continue play, generally for a few games, before getting stuck again and repeating the cycle.  To observe long-term stoppage it would be necessary to position them far enough apart that they have no signal most of the time. Note: For running the demo sketch (either of them), the Arduino that has the GOFIRST = false’ edit should be started first.
